Description

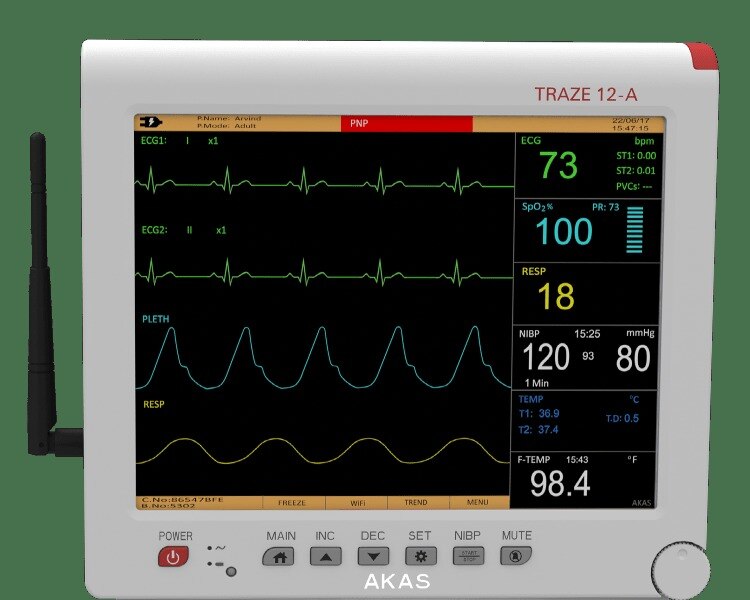

Slim and compact design Audio visual alarm High contrast display CMS connectivity through Wi-Fi Touch screen Digital Enhancement Technology Machine can totally be operated with *touch screen*, *keys* or *jog dial*. Even if one fails other 2 options will work Slim model; does not take much space Wall mountable – like a photo frame Technical Specifications Battery : 14.4V NiMah Battery Capacity : 2 hours Power Consumption : 21.5W Input voltage : 220-240V Ac, 50/60HZ Display : 12 ʻinchʼ TFT display with resistive touch SpO2 Measuring range : 0-100% Resolution : 1% Pulse rate Measuring range : 30-254BPM Resolution : 1 BPM Non-Invasive Blood Pressure (NIBP) Method : Oscillometric Mode : Auto,Manual,STAT Measuring interval in Auto Mode : 1,2,4,…… Repeat cycle update in Stat Mode : 1-5 Systolic Range : Adult – 30 to 250 mmHg Pediatric – 30 to 250 mmHg Neonate – 20 to 160 mmHg Diastolic Range : Adult – 10 to 180 mmHg Pediatric – 10 to 150 mmHg Neonatal – 10 to 140 mmHg Mean Range : Adult – 10 to 180 mmHg Pediatric – 10 to 180 mmHg Neonatal – 20 to 200 mmHg Over pressure protection : Adult mode (297+/-3)mmHg Resolution : 1mmHg Alarms : High & low exceed alarm for SpO2 & pulse rate, Sensor failure, Low perfusion, Battery low indication,High & Low exceed alarm for NIBP ( Sistolic, Diastolic, Mean) ECG Lead type : Standard 5-lead/3-LEAD Lead selection : I, II, III ,aVR, aVL, aVF, V HR measurement range : 30 bpm ‒ 300 bpm Sweep speed : 12.5 mm/s, 25 mm/s, 50 mm/s Gain selection : 2.5mm/mv,5,10,20mm/mv Auto Bandwidth : Surgery mode: 1-20HZ Monitor mode – 0.5-40HZ Diagnostic mode – 0.05-75HZ RESPIRATION Method : Impedance between R-F(RA-LA) Bandwidth : 0.3/2.5 HZ AC Respiration rate : Adult: 0-120rpm Neo/Ped – 1rpm Resolution : 1rpm Temperature Channel : 1/2 Measuring range : 0-50deg C Resolution : 0.1deg C Fast Temperature Channel : 1 Measuring range : 0-50deg C Resolution : 0.1deg C Accuracy SpO2 Adult/Pediatric : 70-100% +/- 2% 0-70% Unspecified Neonate : 70-100% +/- 2% 0-70% Unspecified Pulse Rate : Adult/Pediatric 30-250 bpm +/- 2 bpm Neonate 30-250 bpm +/- 2 bpm Pulse Rate : ± 1 at 40-200 bpm NIBP : ± 3mmHg ECG : ±0.02mV or ±5% Respiration : +/-2rpm Temperature : +/-0.1 deg C Fast Temperature : +/-0.1 deg C Dimension & weight : 294mm(L) x 97mm(H) x 267mm(W), 3.4kg
