Description

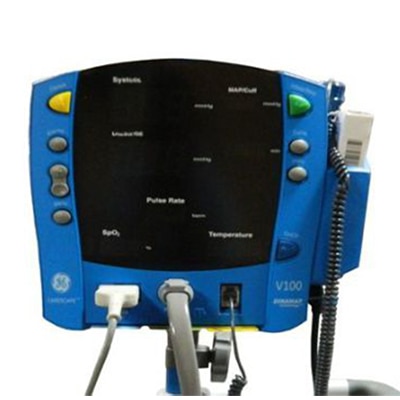

GE Dinamap Carescape V100 Features The GE Carescape V100 patient monitor is a reliable, easy-to-use vital signs monitor that helps you care for many patients efficiently. Its speed, accuracy, and mobility allow you to collect the right information at the point of care, and present it wherever it is needed, so you can make fast, quality care decisions. By combining fast determination times with an advanced algorithm, the CARESCAPE V100 monitor helps ensure patient comfort while maintaining a high standard of clinical accuracy. It also includes the same advanced parameters and algorithms as other higher acuity GE monitors, ensuring measurement consistency across all care areas. It’s a two-in-one monitor, it can be used for both spot check and continuous monitoring. Non-invasive blood pressure determination times as fast as 14 seconds. Exergen TemporalScanner thermometer provides non-invasive, fast, easy and accurate temperatures. Battery has a long run time, typically 8 to 11 hours before requiring a recharge. GE Dinamap SuperSTAT blood pressure algorithms support speed, comfort and artifact rejection for virtually all types of patients. Configurations: NIBP/Rec (standard) NIBP/SpO2 NIBP/SpO2/Temp Options: Nellcor SpO2 Massimo SpO2 GE Dinamap Carescape V100 Specifications Dimensions Height: 7.7” (19.5 cm) Width (Without Temperature): 8.6” (21.9 cm) Width (With Temperature): 10” (25.4 cm) Depth: 5.3” (13.5 cm) Weight (Including battery): 5.4 lbs (2.4 kg) Power Protection Against Electrical Shock: Class II AC Input: 100 to 250VAC, 12VA DC Output voltage: 12VDC at 1A; The AC mains power adapter contains a nonresettable and nonreplaceable fuse. Monitor Protection Against Electrical Shock: Internally powered or Class II when powered from the specified external power supply. DC input voltage: 12 VDC, supplied from a source conforming to IEC 60601-1. Fuses: The monitor contains three fuses. The fuses are mounted within the monitor. The fuses protect the low voltage DC input, the battery, and the remote alarm output. The +5 V output on the host port connector is regulated by internal supply. Environmental Operating Temperature: + 41°F to + 104°F (+ 5°C to + 40°C) Operating Atmospheric Pressure: 700 hPa to 1060 h Storage / Transportation Storage Temperature: – 4°F to + 122°F (– 20°C to + 50°C) Atmospheric Pressure: 500 hPa to 1060 hPa Humidity Range: 5% to 95% noncondensing Radio Frequency: Complies with IEC Publication 60601-1-2 (2001) Medical Electrical Equipment, Electromagnetic Compatibility Requirements and Tests and CISPR 11 (Group 1, Class B) for radiated and conducted emissions. Printer Printer Type: Thermal dot array Resolution: 384 dots/inch horizontal Paper Type: The paper roll used by the printer must be compatible with GE PN 770137. Languages Printed: English, German, French, Italian, Spanish, Portuguese (Brazil and Portugal), Hungarian, Polish, Czech, Finnish, Swedish, Danish, Dutch, Norwegian, and Slovak. Languages Not Printed: (text printed in English only) Russian, Greek, Korean, and Japanese. NIBP Cuff Pressure Range (Normal operating range): 0 to 290 mmHg (adult/ped 0 to 145 mmHg (neonate) Blood Pressure Accuracy (Classic and Auscultatory): Meets ANSI/AAMI standard SP-10:1992 (mean error ≤ 5 mmHg, standard deviation ≤ 8 mmHg). Blood Pressure Accuracy (SuperSTAT): Meets ANSI/AAMI standard SP-10:2002 (mean error ≤ 5 mmHg, standard deviation ≤ 8 mmHg). Maximum Determination: 120 s (adult/ped) 85 s (neonate) Overpressure Cutoff: 300 to 330 mmHg (adult/ped) 150 to 165 mmHg (neonate). BP Range (Classic and Auscultatory) Systolic 30 to 245 mmHg (adult/ped) 40 to 140 mmHg (neonate) MAP 15 to 215 mmHg (adult/ped) 30 to 115 mmHg (neonate) Diastolic 10 to 195 mmHg (adult/ped) 20 to 100 mmHg (neonate) BP range (SuperSTAT) Systolic 30 to 290 mmHg (adult/ped) 30 to 140 mmHg (neonate) MAP 20 to 260 mmHg (adult/ped) 20 to 125 mmHg (neonate) Diastolic 10 to 220 mmHg (adult/ped) 10 to 110 mmHg (neonate) Pulse rate range (Classic and Auscultatory) 30 to 200 beats/min (adult/ped) 30 to 220 beats/min (neonate) Pulse rate range (SuperSTAT) 30 to 240 beats/min (adult/ped) 30 to 240 beats/min (neonate) Pulse rate accuracy ± 3.5% or 3 bpm Ohmeda TruSignal SpO2 Measurement Range SpO2: 1 to 100% Pulse Rate: 30 to 250 bpm Perfusion Range: 0.03 to 20% Ohmeda TruSignal SpO2 Accuracy Saturation Adult: 70 to 100% ±2 digits whichever is greater, (without motion) Neonate: 70 to 100% ±3 digits (without motion) Adult/Neonate: 70 to 100% ±3 digits (during clinical motion) Low perfusion: 70 to 100% ±2 digits (during clinical low perfusion) Pulse rate Adult /Neonate: 30 to 250 bpm: ± 2 digits or ± 2%, whichever is greater, (without motion) 30 to 250 bpm: ± 5 digits (during motion) Low perfusion: 30 to 250 bpm: ± 3 digits Nellcor Oximax SpO2 Measurement Range SpO2: 1 to 100% Pulse Rate: 20 to 250 bpm Perfusion Range: 0.03 to 20% Nellcor Oximax SpO2 Accuracy Saturation Adult: 70 to 100% ±2 digits whichever is greater, (without motion) Neonate: 70 to 100% ±3 digits (without motion) Low perfusion: 70 to 100% ±2 digits (during clinical low perfusion) Pulse rate Adult /Neonate: 40 to 250 bpm: ± 3 digits Low perfusion: 40 to 250 bpm: ± 3 digits Masimo SET SpO2 Measurement Range SpO2: 1 to 100% Pulse Rate: 25 to 250 bpm Perfusion Range: 0.2 to 20% Masimo SET SpO2 Accuracy Saturation Without Motion - adult/pediatric: 70 to 100% ± 2 digits Without Motion - neonate: 70 to 100% ± 3 digits With Motion - adult/pediatric/neo: 70 to 100% ± 3 digits Low perfusion: 70 to 100% ± 2 digits 0 to 69% unspecified Pulse rate Without Motion: 25 to 240 bpm ±3 digits With Motion: normal physiologic range 25 to 240 bpm ±5 digits Alaris Turbo Temperature Scale: °Fahrenheit (F)°; °Celsius (C) Range Predictive mode Max: 41.1°C; 106.0°F; Min: 35.6°C; 96.0°F Monitor mode: Max: 41.1°C; 106.0°F; Min: 26.7°C; 80.0°F Monitor Mode Accuracy: ±0.1°C; ±0.2°F (when tested in a calibrated liquid bath; meets ASTM E1112, Table 1, in range specified) Determination Time (approx.): 10 seconds, typical Battery Capacity: 6V; 3.3 Ahr sealed lead acid battery Battery Life 8.1 hours (standard deviation of 0.46) with a usage scenario of: NIBP determinations every 15 minutes with SpO2 and temperature active. 11.5 hours (standard deviation of 0.53) non-SpO2 versions with a usage scenario of: NIBP determinations every 15 minutes with temperature active. Charge Time (Approx.): 5 hours from full discharge when the monitor is off Approx. 8 hours when the monitor on.
